Deploy a component

Language Icon 1 day ago · 3 min read
Cloud
Contribute Go to Code

Deploy pipelines allow you to deploy your components to a target environment. This guide covers how to configure your CircleCI pipeline to support manual deployment capabilities using a deploy pipeline.

Introduction

CircleCI deploy pipelines allow you to deploy a specific version of your component to a target environment using a custom deploy pipeline. By deploying an already-built and tested version, you can skip the build process that would normally be part of a CircleCI pipeline and deploy right away. This provides fast execution and full control over the deployment process, making it ideal for complex systems and time-critical requirements.

Prerequisites

To deploy a component using a deploy pipeline ensure you have set up deploy markers and a deploy pipeline, as described in the Set up a Deploy Pipeline guide.

Deploy using a deploy pipeline

To deploy a component using the deploy pipeline you can select the Deploy button on the project overview page. The following steps show how to deploy a component from the project overview page:

  1. In the CircleCI web app, select your org from the org cards on your user homepage.

  2. Select Projects from the sidebar and locate your project from the list. You can use the search to help.

  3. Select the Overview link for your project.

  4. Select Deploy. This opens the deploy execution modal.

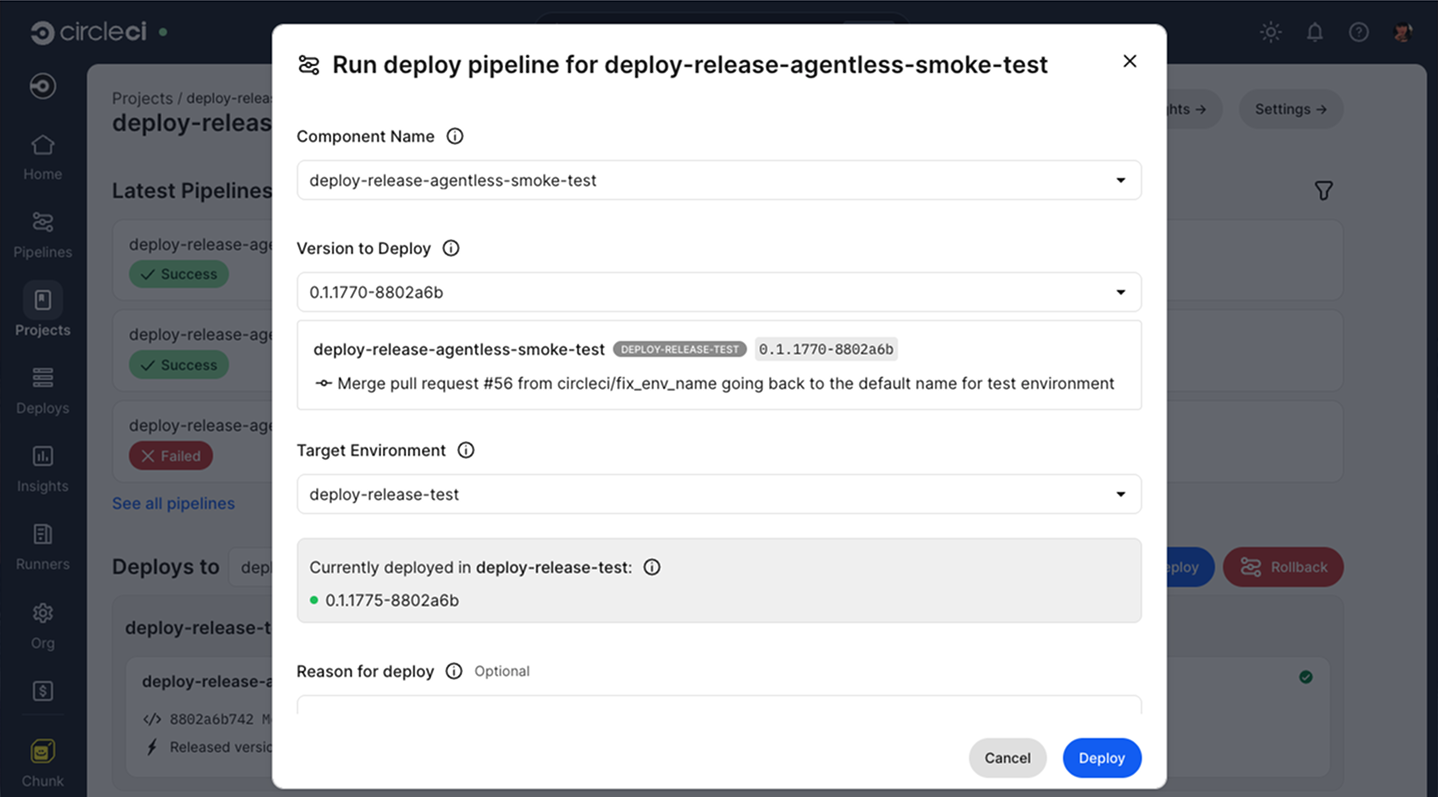

    Deploy execution modal
    Figure 1. Deploy execution modal

    The modal displays several configuration options with parameters auto-filled based on your deploy configuration. The following sections explain each required property:

    Component Name

    The name of the component you wish to deploy. If your project deploys multiple components, this helps you choose a specific component you want to deploy.

    Version to deploy

    The version of the component you wish to deploy.

    Target Environment

    The environment to which you wish to deploy the version.

    Deploy reason

    You can optionally provide a reason for the deployment.

    Additional settings

    At the bottom of the modal you can expand the "Additional settings" section in which you can access the following settings:

    • The namespace for your deployment if your deployment target requires it. You can leave namespace empty, in which case the default value will be used.

    • You can set the config and checkout sources for your deployment.

    • The Parameters section shows the auto-filled parameters from your configuration file, which you can modify as needed for the specific deployment.

  5. Select Deploy to trigger the deploy pipeline.

The deploy pipeline will execute and perform the deployment operation according to your configuration.
