Set up a deploy pipeline

1 day ago

Cloud

Contribute

Deploy pipelines allow you to deploy your components to a target environment as fast as possible. This guide covers how to configure your CircleCI pipeline to support manual deployment capabilities using a deploy pipeline.

Introduction

CircleCI deploy pipelines allow you to deploy a specific version of your component to a target environment using a custom deploy pipeline. By deploying an already built and tested version, you can skip the build process that would normally be part of a CircleCI pipeline and deploy directly. This provides fast execution and full control over the deployment process, making it ideal for complex systems and time-critical requirements.

Prerequisites

A CircleCI account connected to your code. You can sign up for free.
Your code must be stored in a GitHub repository to use the deploy pipeline feature. You will need to install the CircleCI GitHub App into your organization if you have not already done so.
A CircleCI project with a workflow configured to deploy your code.
Deploy markers must be configured in your project to use a deploy pipeline. You will be guided to configure deploy markers through the steps on this page or you can get set up manually by following the Configure Deploy Markers guide.
Familiarity with CircleCI deploys concepts. Find full details in the CircleCI Deploys Overview guide.

Set up a deploy pipeline

The following steps guide you through setting up a custom deploy pipeline.

1. Start the deploy pipeline setup

In the CircleCI dashboard, navigate to Home or Projects from the sidebar.
Select the Overview link for your project.
Select the Deploy button to open the deploy pipeline setup modal.

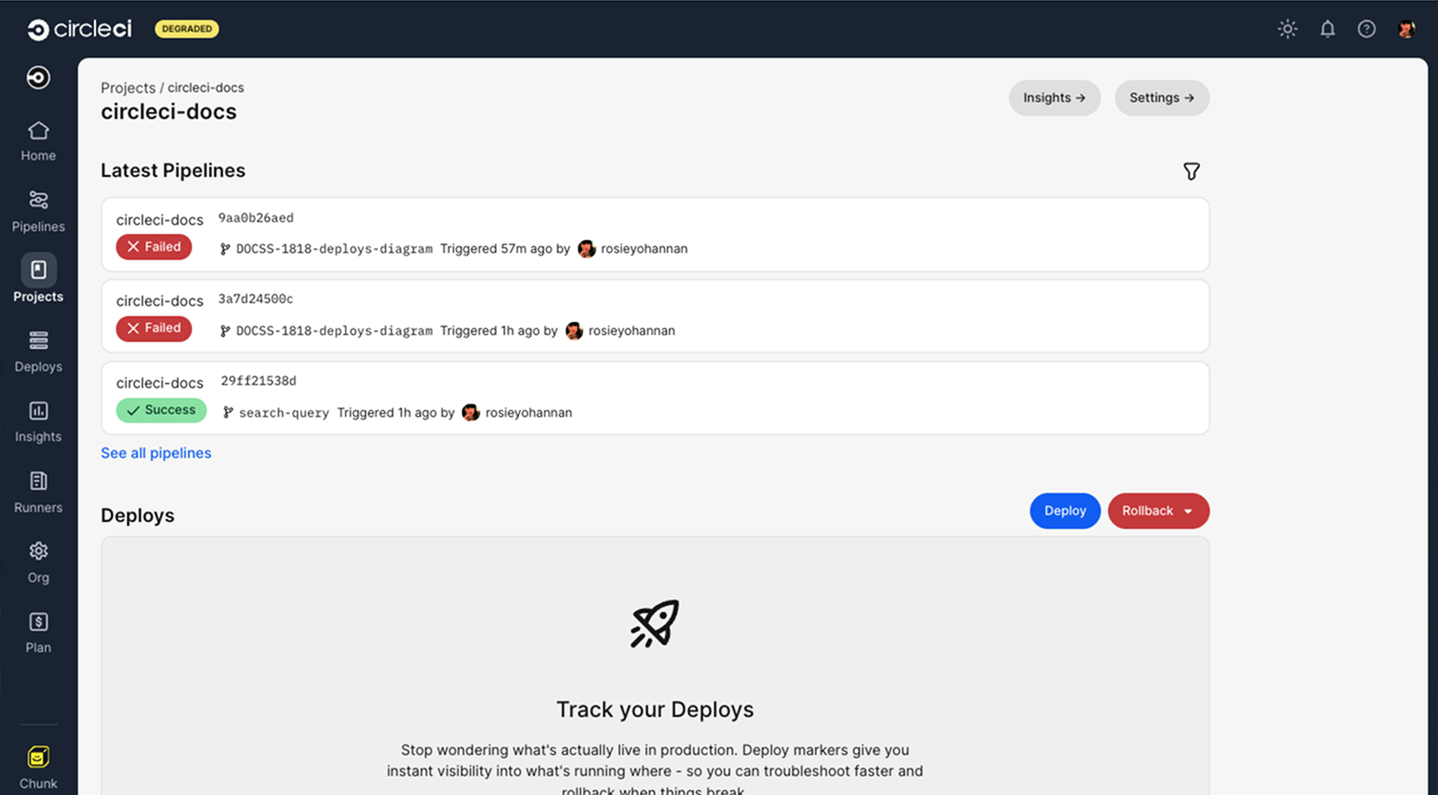

Figure 1. Deploy button on project overview page

2. Confirm GitHub App installation

To set up deploy pipelines you must install the CircleCI GitHub App into your organization. For more information, see the Users, Organizations, and Integrations Guide.

Only organization administrators can install the GitHub App. If you are not an organization administrator, you can ask an administrator to install the GitHub App for you.

If the GitHub App is not installed in your organization, install it now by selecting Install the GitHub App. If the GitHub App is already installed in your organization, the GitHub App Installation step is automatically marked as completed.

Figure 2. Install the GitHub App

3. Create a pipeline definition

Next, create a new pipeline definition for your deploy pipeline.

A pipeline definition is a setting within CircleCI in your project to specify the different elements that make up a pipeline:

Config source
Config file path
Checkout source
Triggers

No changes are being pushed to your repository at this point. GitHub pipelines are viewable at Project settings Project Setup.

Select the repository that includes your project code. This is the repository that you want to deploy with this deploy pipeline.
Select Create pipeline definition. This creates a new pipeline definition for your deploy pipeline in your project.

3. Add deploy markers

Deploy markers must be configured in your project to use CircleCI deploy pipelines. If you already have deploy markers set up, select "I’ll make the config changes myself" and then select I’ve updated my config to proceed to the next step.

The in-app setup process guides you to set up deploy markers now. Alternatively, manual configuration steps are available in the Configure Deploy Markers guide.

Generate with AI
Make the changes yourself

Select Generate config change with AI to auto-generate a new configuration file, based on your project configuration, with deploy markers added.
Once the generation is complete, select Create pull request to create a pull request with the changes.
View and check the pull request and merge when you are satisfied with the changes.
Back in the CircleCI web app, select I have merged the pull request to proceed to the next step.

Select the "I’ll make the config changes myself" checkbox.
In the Environment Name field, select or type your target environment name. More information in the Configure Deploy Markers guide. If the specified environment does not exist, it will be created. If you do not specify an environment, CircleCI will create one named default.
In the Component Name field, select or type the name of the component you want to rollback. The component name sets the name that will be displayed in the Deploys UI.

The setup will auto-generate deploy marker commands based on your selections.

Figure 3. Add deploy marker values
Copy the generated commands using the Copy button and paste them into your existing config file in your repository where the deployment occurs on the branch you selected in the guided setup.

Ensure the circleci run release plan step comes before the deployment step, followed by the circleci run release update step.

You will need to set the target version for these commands. See the Examples for Target Version section for more details.

Figure 4. Copy deploy marker commands to your config file
Once you have updated your config file, select I’ve updated my config to proceed to the next step.

4. Set up deploy configuration

In this step you will configure your new deploy pipeline. You can then use this to deploy your application to a target environment from the CircleCI web app.

Review the example config file template. The example config shows how deploys will be made, and how deploy markers are used to track these deployments.
Select Commit config & create Pull Request to create this deploy configuration template in your repository. The setup will open a pull request in a new tab with the suggested changes.

The configuration will be committed to a new branch called deploy-pipeline-setup.

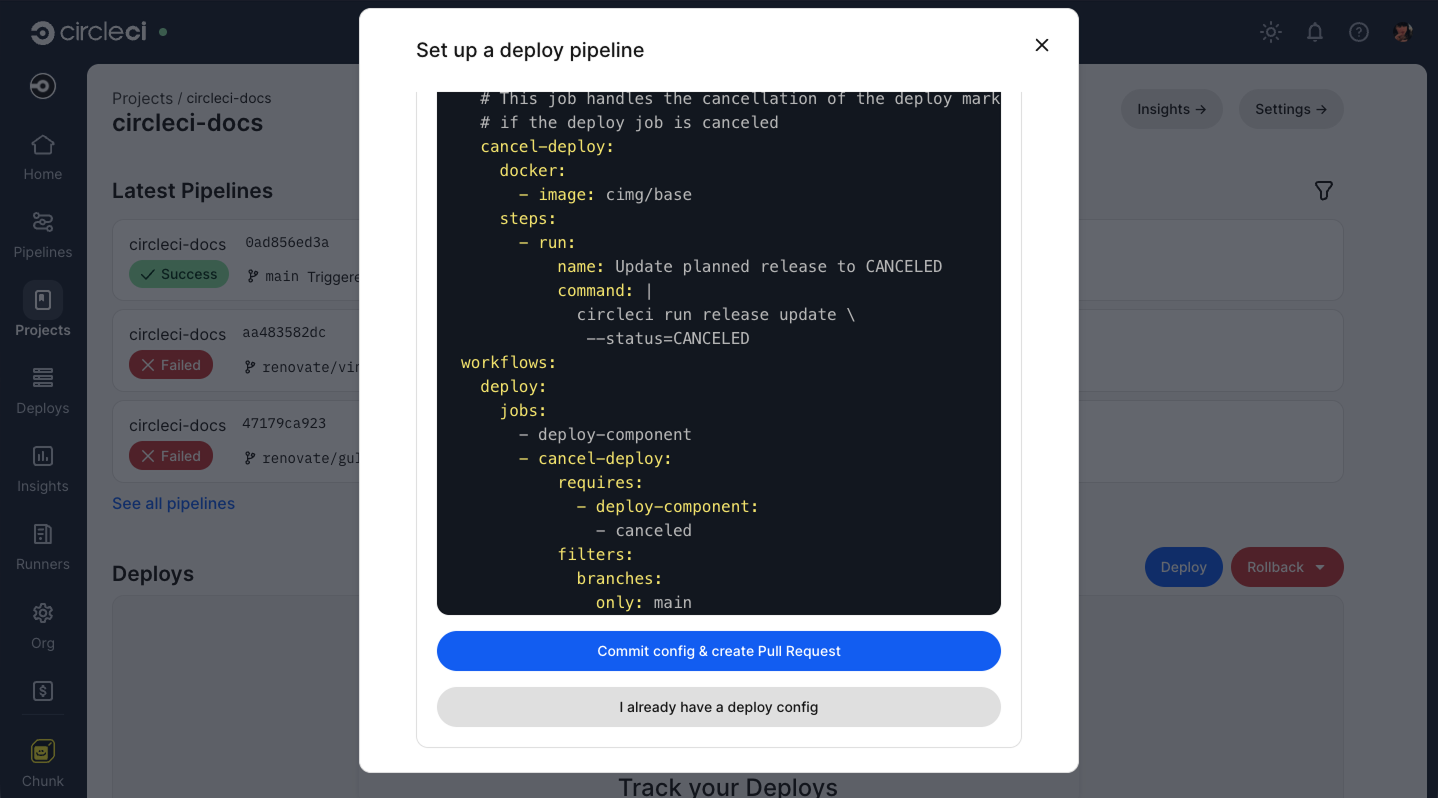

Figure 5. Commit config button

Alternatively, you can copy the suggested configuration into an existing or newly created deploy config file. Make sure the file is called deploy.yml and is located in the .circleci folder, for the system to detect and use this file. In this case, select I already have a deploy config and skip to the next step. See the Configuration tips section for more details on customizing your deploy configuration.
You can manually navigate to the pull request by selecting View pull Request under the example config file.
In the pull request, modify the deploy configuration according to your specific deployment needs. For example: set your own parameters and deployment logic, uncomment the included common deployment setups or write your own custom deployment implementation.
Once you have customized the configuration, merge the pull request to complete the deploy setup.
After merging the pull request, return to the setup page in the CircleCI web app and select Setup deploy pipeline to activate the deploy pipeline.

You can now deploy your component by selection Deploy in your project overview and running your deploy pipeline. For detailed steps, see the Deploy a Component guide.

Run a deploy pipeline

For steps to running a deploy pipeline, see the Deploy a Component guide.

Change Deploy Pipeline

You can switch deploy pipelines for your project at any time. If you have configured a new pipeline and want to trigger this pipeline when performing deployments, you can change which pipeline is used for deploy operations.

To select a different pipeline for deployments, follow these steps:

In the CircleCI web app, select your org from the org cards on your user homepage.
Select Projects from the sidebar and locate your project from the list. You can use the search to help.
Select the ellipsis next to your project and select Project Settings.

You can also access project settings from each project overview page using the Settings button.
Select the Deploys tab.
In the Deploy Pipeline section, choose the pipeline you want to be selected as the deploy pipeline from the dropdown. You can also choose to unset the deploy pipeline at this point, which will enable you to use the guided setup again as described above.

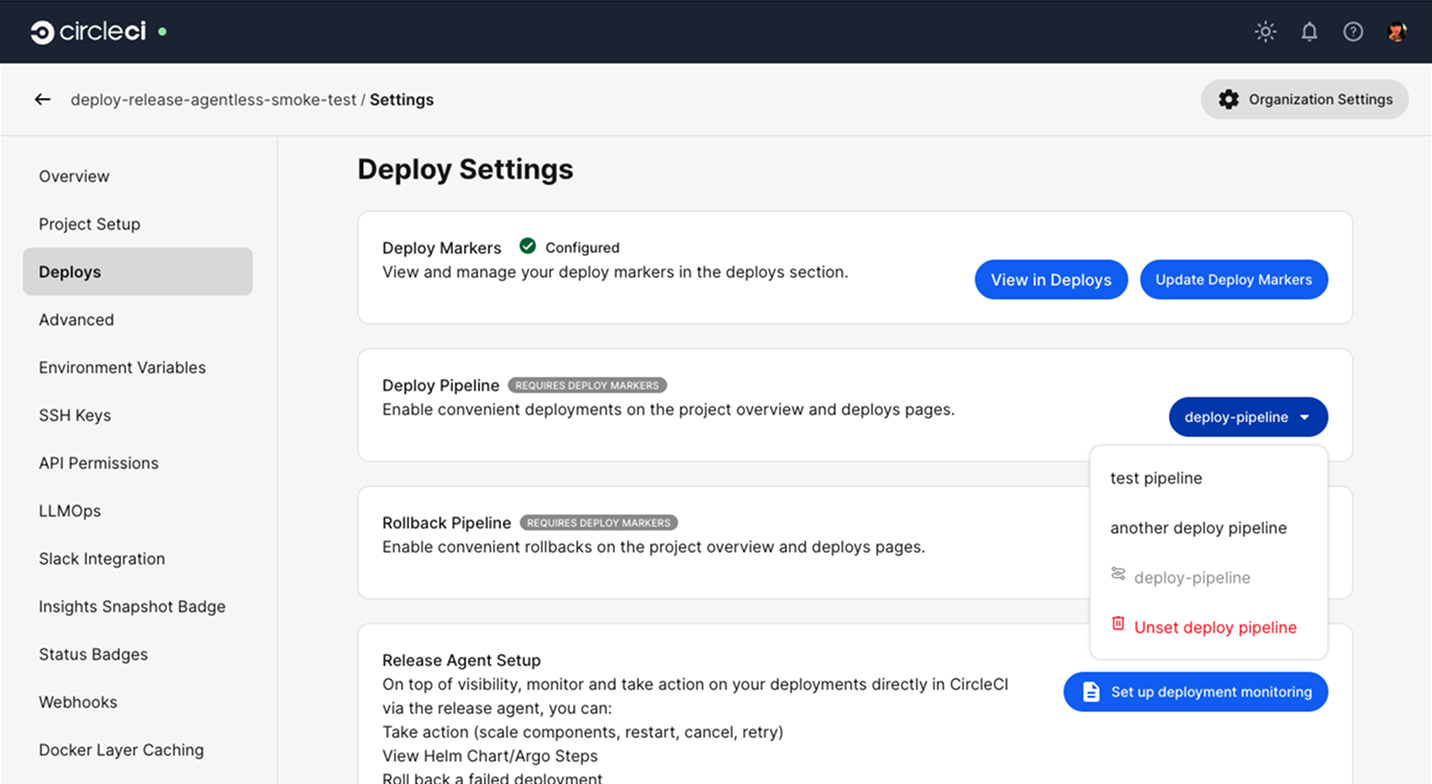

Figure 6. Change deploy pipeline

Configuration tips

When customizing your deploy configuration, you can use the following pipeline values to access deploy values:

pipeline.deploy.component_name
pipeline.deploy.target_environment_name
pipeline.deploy.current_version
pipeline.deploy.namespace
pipeline.deploy.reason

For a full list of pipeline values, see the Pipeline Values guide.

Example deploy pipeline configuration

In this section you can find a full example of a deploy pipeline config. This example uses Helm to perform a deployment on AWS EKS and kubectl to validate its status.

This template assumes the following:

Your deployment is annotated with a "version" label.
The name of your Helm chart is the same as the name of the component. If this is not the case, you can instead add a label to the deployment with the component name and retrieve it that way

Example deploy pipeline configuration

version: 2.1
orbs:
  aws-cli: circleci/aws-cli@5.4.0
  helm: circleci/helm@3.2.0
commands:
  # The following command is needed only for the specific logic in this example. Feel free to remove it if you don't need it.
  install_yq:
    steps:
      - run:
          name: install yq
          command: |
            wget https://github.com/mikefarah/yq/releases/latest/download/yq_linux_amd64 -O /tmp/yq
            wget https://github.com/mikefarah/yq/releases/latest/download/checksums
            sha_file=$(sha256sum /tmp/yq | awk '{ print $1 }')
            sha=$(awk '$1=="yq_linux_amd64"{print $19}' checksums)
            if [ "$sha_file" != "$sha" ]; then
                    echo "Checksum failed" >&2
                    exit 1
            fi
            echo "The checksums match."
            chmod +x /tmp/yq
  verify_current_version:
    description: "Verifies that the current version matches the expected value"
    parameters:
      resource_name:
        type: string
        description: "Name of the resource to deploy"
      namespace:
        type: string
        default: "default"
        description: "Kubernetes namespace (optional)"
      current_version:
        type: string
        description: "Current version to verify"
    steps:
      - run:
          name: Verify current version
          command: |
            RELEASE_NAME="<< parameters.resource_name >>"
            if [ "<< parameters.current_version >>" == "" ]; then
              echo "Current version not specified."
              exit 0
            fi
            if [ -z "$RELEASE_NAME" ]; then
              echo "Missing release name"
              exit 1
            fi
            helm get manifest "<< parameters.resource_name >>" --namespace "<< parameters.namespace >>" > manifest.yaml
            VERSION_LABEL=$(yq e '
              select(.kind == "Deployment") |
              .spec.template.metadata.labels.version
            ' manifest.yaml)
            if [ -z "$VERSION_LABEL" ] || [ "$VERSION_LABEL" == "null" ]; then
              echo "Could not extract version label from manifest"
              exit 1
            fi
            if [ "$VERSION_LABEL" == "<< parameters.current_version >>" ]; then
              echo "Version matches current version << parameters.current_version >>"
            else
              echo "Version mismatch: expected << parameters.current_version >> but found $VERSION_LABEL"
              exit 1
            fi
  retrieve_target_version:
    description: "Retrieve the target version to deploy"
    parameters:
      target_version:
        type: string
        description: "Target version to deploy"
    steps:
      - run:
          name: Set target version
          command: |
            TARGET_VERSION="<< parameters.target_version >>"
            if [ -z "$TARGET_VERSION" ]; then
              echo "TARGET_VERSION is required"
              exit 1
            fi
            echo "export CONTAINER_VERSION=${TARGET_VERSION}" >> $BASH_ENV
            source $BASH_ENV
  perform_deployment:
    description: "perform deployment"
    parameters:
      resource_name:
        type: string
        description: "Name of the resource to deploy"
      namespace:
        type: string
        default: "default"
        description: "Kubernetes namespace (optional)"
      target_version:
        type: string
        description: "Target version to deploy"
    steps:
      - run:
          name: Perform deployment
          command: |
            # This example deploys by upgrading the helm chart with the target version
            # Adjust this command based on your specific deployment method
            helm upgrade << parameters.resource_name >> ./chart-path \
              --namespace << parameters.namespace >> \
              --set image.tag=<< parameters.target_version >> \
              --install \
              --wait
  # This command validates the deployment after deploying. The provided example uses kubectl to check the ready replicas and number of restarts
  # of pods associated with the deployment and causes the job to fail if the deployment is not ready or has too many restarts by
  # the end of the validation duration.
  # Mind the fact that the example assumes you have an app label with value equal to the component name, in order to retrieve the pods.
  # If that is not the case you will have to adapt the logic in the script.
  validate_deployment:
    description: "Validates the deployment after deploying"
    parameters:
      resource_name:
        type: string
        description: "Name of the resource that has been deployed"
      namespace:
        type: string
        default: "default"
        description: "Kubernetes namespace (optional)"
      target_version:
        type: string
        description: "Target version"
      max_restarts:
        type: integer
        default: 5
        description: "Maximum number of allowed restarts"
      duration:
        type: integer
        default: 600
        description: "Duration of the validation in seconds"
    steps:
      - run:
          name: Validate deployment
          command: |
            CHECK_DURATION=$((SECONDS+<< parameters.duration >>))  # 10 minutes duration
            REPLICAS_OK=false

            LABEL_SELECTOR="app=<< parameters.resource_name >>,version=<< parameters.target_version >>"
            DEPLOYMENT_FOUND=false
            echo "Starting validation of version: << parameters.target_version >>"
            while [ $SECONDS -lt $CHECK_DURATION ]; do
              DEPLOYMENT=$(kubectl get deployment << parameters.resource_name >>  -n << parameters.namespace >> --ignore-not-found -o json)

              if [ -n "$DEPLOYMENT" ]; then
                  DEPLOYMENT_FOUND=true
                  DESIRED=$(echo "$DEPLOYMENT" | jq -r '.spec.replicas // 0')
                  READY=$(echo "$DEPLOYMENT" | jq -r '.status.readyReplicas // 0')

                  # Handle empty values
                  DESIRED=${DESIRED:-0}
                  READY=${READY:-0}

                  echo "Current replicas $READY/$DESIRED"
                  if [ "$DESIRED" -eq "$READY" ]; then
                    REPLICAS_OK=true
                  else
                    REPLICAS_OK=false
                  fi
              else
                  DEPLOYMENT_FOUND=false
                  echo "Deployment not found"
                  continue
              fi
              RESTARTS=$(kubectl get pods -l $LABEL_SELECTOR -n << parameters.namespace >> \
                -o jsonpath='{.items[*].status.containerStatuses[*].restartCount}' 2>/dev/null | awk '{sum=0; for(i=1; i<=NF; i++) sum+=$i; print sum+0}')
              # Handle potential errors
              if [[ -z "$RESTARTS" || ! "$RESTARTS" =~ ^[0-9]+$ ]]; then
                RESTARTS=0
              fi
              echo "Number of restarts $RESTARTS"
              if [ $RESTARTS -gt << parameters.max_restarts >> ]; then
                echo "FAILURE_REASON='Exceeded maximum number of restarts'" > failure_reason.env
                exit 1
              fi
              sleep 10  # Check every 10 seconds
            done
            if [ $DEPLOYMENT_FOUND = false ]; then
                echo "FAILURE_REASON='Deployment was not found'" > failure_reason.env
                exit 1
            fi
            if [ $REPLICAS_OK = false ]; then
                echo "FAILURE_REASON='Desired replicas doesn't match ready replica'" > failure_reason.env
                exit 1
            fi
jobs:
  deploy-component:
    docker:
      - image: cimg/aws:2023.03
    environment:
      COMPONENT_NAME: << pipeline.deploy.component_name >>
      NAMESPACE: << pipeline.deploy.namespace >>
      ENVIRONMENT_NAME: << pipeline.deploy.target_environment_name >>
      CURRENT_VERSION: << pipeline.deploy.current_version >>
      TARGET_VERSION: << pipeline.deploy.target_version >>
    steps:
      - checkout
      - attach_workspace:
          at: .
      ### Uncomment this section if you are using AWS EKS, otherwise add the steps to authenticate with your platform
      - aws-cli/setup:
          role_arn: $AWS_OIDC_ROLE
          region: $AWS_REGION
          role_session_name: "example"
          session_duration: "1800"
      - run: aws sts get-caller-identity
      - run: aws configure list
      - run:
          name: Update kubeconfig for EKS
          command: |
            aws eks update-kubeconfig --name "$EKS_CLUSTER_NAME"
            aws sts get-caller-identity  # Verify credentials are still valid
      - helm/install_helm_client
      - install_yq
      # This command is used to validate that the current version on your cluster matches the value that was specified when
      # the pipeline was triggered. If that is not the case it is possible that the deployment has been updated in the meantime
      # this check is optional and can be removed if you don't need it.
      # Refer to the commands section above for details about the implementation of this command.
      - verify_current_version:
          resource_name: "<< pipeline.deploy.component_name >>"
          namespace: "<< pipeline.deploy.namespace >>"
          current_version: "<< pipeline.deploy.current_version >>"
      # This step will create a new deploy with PENDING status that will show up in the deploys tab in the UI
      - run:
          name: Plan release for deployment
          command: |
            circleci run release plan  \
              --environment-name=${ENVIRONMENT_NAME} \
              --namespace=${NAMESPACE} \
              --component-name=${COMPONENT_NAME} \
              --target-version=${TARGET_VERSION}
      # This command will perform the actual deployment, deploying the target version to the target environment
      - perform_deployment:
          resource_name: "<< pipeline.deploy.component_name >>"
          namespace: "<< pipeline.deploy.namespace >>"
          target_version: "<< pipeline.deploy.target_version >>"
      # This step will update the PENDING deployment marker to RUNNING.
      # If you are not going to perform any validation you can just remove this.
      - run:
          name: Update planned release to RUNNING
          command: |
            circleci run release update \
              --status=RUNNING
      # This step performs validation on the deployment status after the deployment and sets the failure reason if the validation fails.
      # if you don't want to perform any validation you can just remove this.
      - validate_deployment:
          resource_name: "<< pipeline.deploy.component_name >>"
          target_version: "<< pipeline.deploy.target_version >>"
          namespace: "<< pipeline.deploy.namespace >>"
      # These last two steps update the PENDING deployment marker to SUCCESS or FAILED, based on the outcome of the job.
      - run:
          name: Update planned release to SUCCESS
          command: |
            # if the deployment failed, we don't want to update the status to SUCCESS. This is unnecessary if there is no logic around
            # validating the deployment status.
            if [ -f failure_reason.env ]; then
              exit 0
            fi
            circleci run release update \
              --status=SUCCESS
          when: on_success
      - run:
          name: Update planned release to FAILED
          command: |
            if [ -f failure_reason.env ]; then
              source failure_reason.env
            fi
            FAILURE_REASON="${FAILURE_REASON:-}"
            circleci run release update \
             --status=FAILED \
             --failure-reason="$FAILURE_REASON"
          when: on_fail
  # This job handles the cancellation of the deploy marker if the deploy job is canceled
  cancel-deploy:
    docker:
      - image: cimg/aws:2023.03
    steps:
      - run:
          name: Update planned release to CANCELED
          command: |
            circleci run release update \
             --status=CANCELED
workflows:
  deploy:
    jobs:
      - deploy-component:
          context:
            # provide any required context
      - cancel-deploy:
          context:
            # provide any required context
          requires:
            - deploy-component:
              - canceled
          filters:
            branches:
              only: main

[path]

[title]

Set up a deploy pipeline

Introduction

Prerequisites

Set up a deploy pipeline

1. Start the deploy pipeline setup

2. Confirm GitHub App installation

3. Create a pipeline definition

3. Add deploy markers

4. Set up deploy configuration

Run a deploy pipeline

Change Deploy Pipeline

Configuration tips

Example deploy pipeline configuration
