Set an environment variable

2 months ago · 7 min read

Cloud Server v4+

Contribute

Environment variables can be stored and configured for use in CircleCI jobs in several ways to provide variety in scope and authorization level.

Using Docker? Authenticating Docker pulls from image registries is recommended when using the Docker execution environment. Authenticated pulls allow access to private Docker images, and may also grant higher rate limits, depending on your registry provider. For further information see Using Docker authenticated pulls.

Set an environment variable in a shell command

While CircleCI does not support interpolation when setting environment variables, it is possible to set variables for the current shell by using BASH_ENV. This approach is useful for both modifying your PATH and setting environment variables that reference other variables.

version: 2.1

jobs:
  build:
    docker:
      - image: cimg/base:2023.06
    steps:
      - run:
          name: Update PATH and Define Environment Variable at Runtime
          # Add source command to execute code and make variables
          # available in current step.
          command: |
            echo 'export PATH=/path/to/foo/bin:"$PATH"' >> "$BASH_ENV"
            echo "export VERY_IMPORTANT=VALUE_CONTENT" >> "$BASH_ENV"
            source "$BASH_ENV"

Depending on your shell, you may have to append the new variable to a shell startup file like ~/.tcshrc or ~/.zshrc.

For more information, refer to your shell’s documentation on setting environment variables.

Set an environment variable in a step

To set an environment variable in a step, use the environment key.

version: 2.1

jobs:
  build:
    docker:
      - image: cimg/base:2023.06
    steps:
      - checkout
      - run:
          name: Run migrations
          command: sql/docker-entrypoint.sh sql
          # Environment variable for a single command shell
          environment:
            DATABASE_URL: postgresql://postgres@localhost:5432/test_db

Since every run step is a new shell, environment variables are not shared across steps. If you need an environment variable to be accessible in more than one step, export the value using BASH_ENV.

Set an environment variable in a job

To set an environment variable in a job, use the environment key.

version: 2.1

jobs:
  build:
    docker:
      - image: cimg/base:2022.04-20.04
    environment:
      FOO: bar

Integers longer than 6 digits will be converted to an exponential number. To avoid this, store them as a string instead (for example, "1234567").

Set an environment variable in a context

On the CircleCI web app, go to Organization Settings.
Select the context you want to associate your environment variable with, or create a new one by clicking the Create Context button.
Select Add Environment Variable and enter a name and value.

Use your new environment variable in your .circleci/config.yml once the context is added under the workflows key, as follows:

version: 2.1

workflows:
  test-env-vars:
    jobs:
      - build:
          context: my_context_name # has an env var called MY_ENV_VAR

jobs:
  build:
    docker:
      - image: cimg/base:2023.06
    steps:
      - checkout
      - run:
          name: "echo an env var that is part of our context"
          command: |
            echo $MY_ENV_VAR

Creating a context allows you to share environment variables across multiple projects, and control who has access. For more information about controlling access to environment variables with contexts, refer to the Restricting a context documentation.

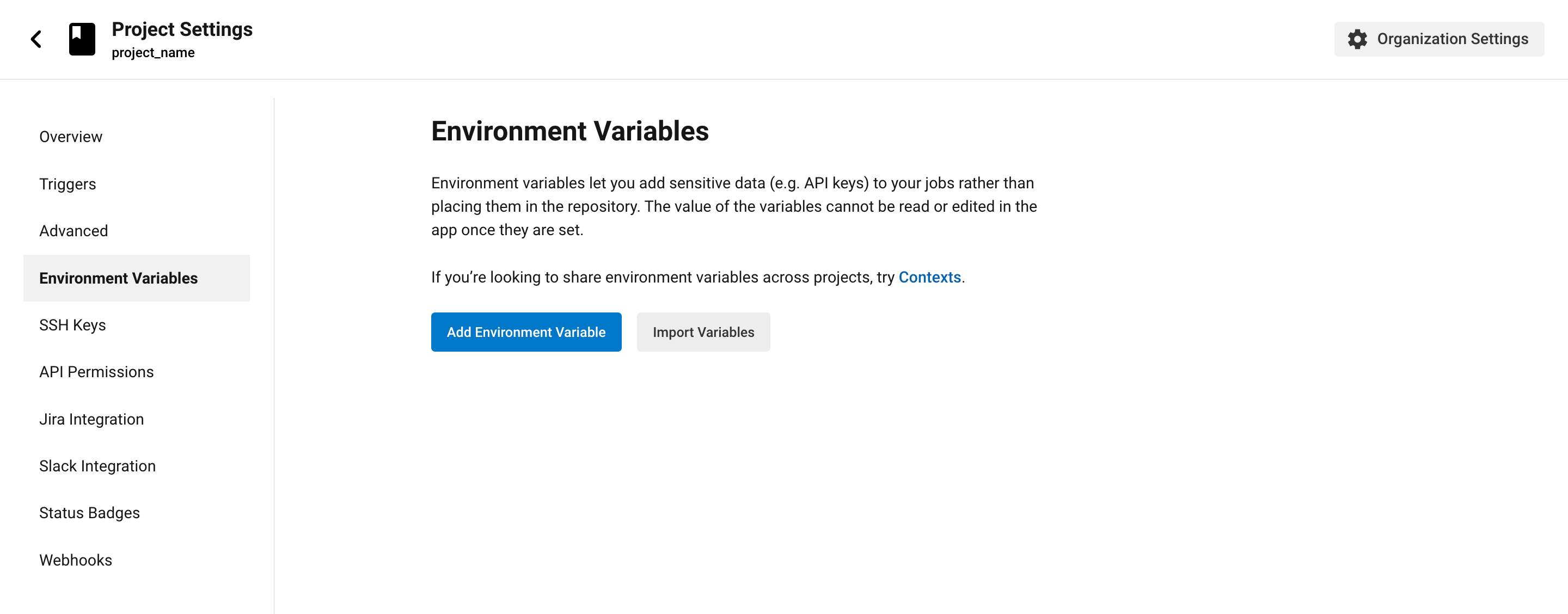

Set an environment variable in a project

On the CircleCI web app, go to your project’s settings. You can do this two ways: Navigate to Projects on the side navigation, and then click the ellipsis button in the project’s row, or select the Project Settings button on the project’s individual Pipelines page.
Select Environment Variables in the side navigation.
Select Add Variable to enter a name and value of the new environment variable.

Use your new environment variables in your .circleci/config.yml as follows:

version: 2.1

workflows:
  test-env-vars:
    jobs:
      - build

jobs:
  build:
    docker:
      - image: cimg/base:2023.06
    steps:
      - checkout
      - run:
          name: "echo an env var that is part of our project"
          command: |
            echo $MY_ENV_VAR # this env var must be set within the project

Once created, environment variables are hidden and uneditable in the application. Changing an environment variable is only possible by deleting and recreating it.

Set an environment variable in a container

Environment variables can also be set for a Docker container. To do this, use the environment key.

Environment variables set in this way are not available to steps run within the container, they are only available to the entrypoint/command run by the container. By default, CircleCI will ignore the entrypoint for a job’s primary container. For the primary container’s environment variables to be useful, you will need to preserve the entrypoint. For more information, see the Adding an entrypoint section of the Custom images guide.

version: 2.1

jobs:
  build:
    docker:
      - image: cimg/base:2023.06
        # environment variables available for entrypoint/command run by docker container
        environment:
          MY_ENV_VAR_1: my-value-1
          MY_ENV_VAR_2: my-value-2

The following example shows separate environment variable settings for the primary container image (listed first) and the secondary or service container image.

While hard-coded environment variable values will be passed on correctly to the secondary or service container, contexts or project specific environment variables will not be interpolated for non-primary containers.

version: 2.1

jobs:
  build:
    docker:
      - image: cimg/base:2023.06
        environment:
          MY_ENV_VAR_1: my-value-1
          MY_ENV_VAR_2: my-value-2
      - image: cimg/postgres:15.3.0
        environment:
          MY_ENV_VAR_3: my-value-3
          MY_ENV_VAR_4: my-value-4

Encoding multi-line environment variables

If you are having difficulty adding a multiline environment variable, use base64 to encode it.

$ echo "foobar" | base64 --wrap=0
Zm9vYmFyCg==

Store the resulting value in a CircleCI environment variable.

$ echo $MYVAR
Zm9vYmFyCg==

Decode the variable in any commands that use the variable.

$ echo $MYVAR | base64 --decode | docker login -u my_docker_user --password-stdin
Login Succeeded

Not all command-line programs take credentials in the same way that docker does.
