Chunk setup and overview Beta

Language Icon 9 minutes ago · 13 min read
Cloud
Contribute Go to Code
Chunk by CircleCI is currently in beta. There are no extra costs during beta. Chunk uses CircleCI credits and your AI model provider tokens. Chunk tasks will be a paid feature when generally available.
Feedback or feature requests? Submit them on our Ideas board where you can also see existing feature requests and vote on them.

Chunk by CircleCI is an AI agent that you can set up in your organization to assist with CI/CD related tasks:

  • Use the Chunk chat UI to get help with any aspect of your project.

  • Assign Chunk tasks to proactively manage your CI/CD processes. For an example see the Fix Flaky Tests guide.

How Chunk works

Chunk connects to your existing CircleCI pipelines and analyzes both your build history and repository code to understand how your tests, configurations, and dependencies behave.

Chunk uses AI to proactively manage your CI/CD processes. Set Chunk tasks to monitor for issues. When issues occur, Chunk identifies root causes, proposes or applies validated fixes automatically.

Chunk uses your own OpenAI or Anthropic API key, so your data and credentials always stay fully under your control.

Set up Chunk

The following sections guide you through the Chunk setup process. Once your setup is complete you can chat with Chunk for help with projects and assign Chunk tasks to proactively manage your CI/CD processes.

Prerequisites

Ensure you have the following prerequisites in place before you get started:

  • An API key from either Anthropic or OpenAI for Chunk to process and generate fixes. Your source code is not stored nor used for training purposes by CircleCI. If you are using OpenAI you should also check the following:

  • Ensure you have the CircleCI GitHub App installed in your GitHub organization. Check Organization Settings  VCS Connections. Chunk needs the GitHub App installed to be able to recommend fixes and open pull requests.

  • Allow Chunk tasks for your organization: Navigate to Organization Settings  Advanced and select to toggle on the Allow Chunk tasks option.

Setup

Once you meet the prerequisites, you can set up Chunk as follows:

  1. In the CircleCI web app, select your organization.

  2. Select Chunk from the bottom of the sidebar Chunk icon.

  3. Select Set up Chunk.

    Chunk setup modal
    Figure 1. Set up Chunk for your organization

  4. You should see a passed icon to indicate you already have the GitHub App installed for your organization. If not, use the Install CircleCI GitHub App button to install it now.

  5. Select your AI Model provider (Anthropic or OpenAI).

  6. Enter your API key for your chosen model provider.

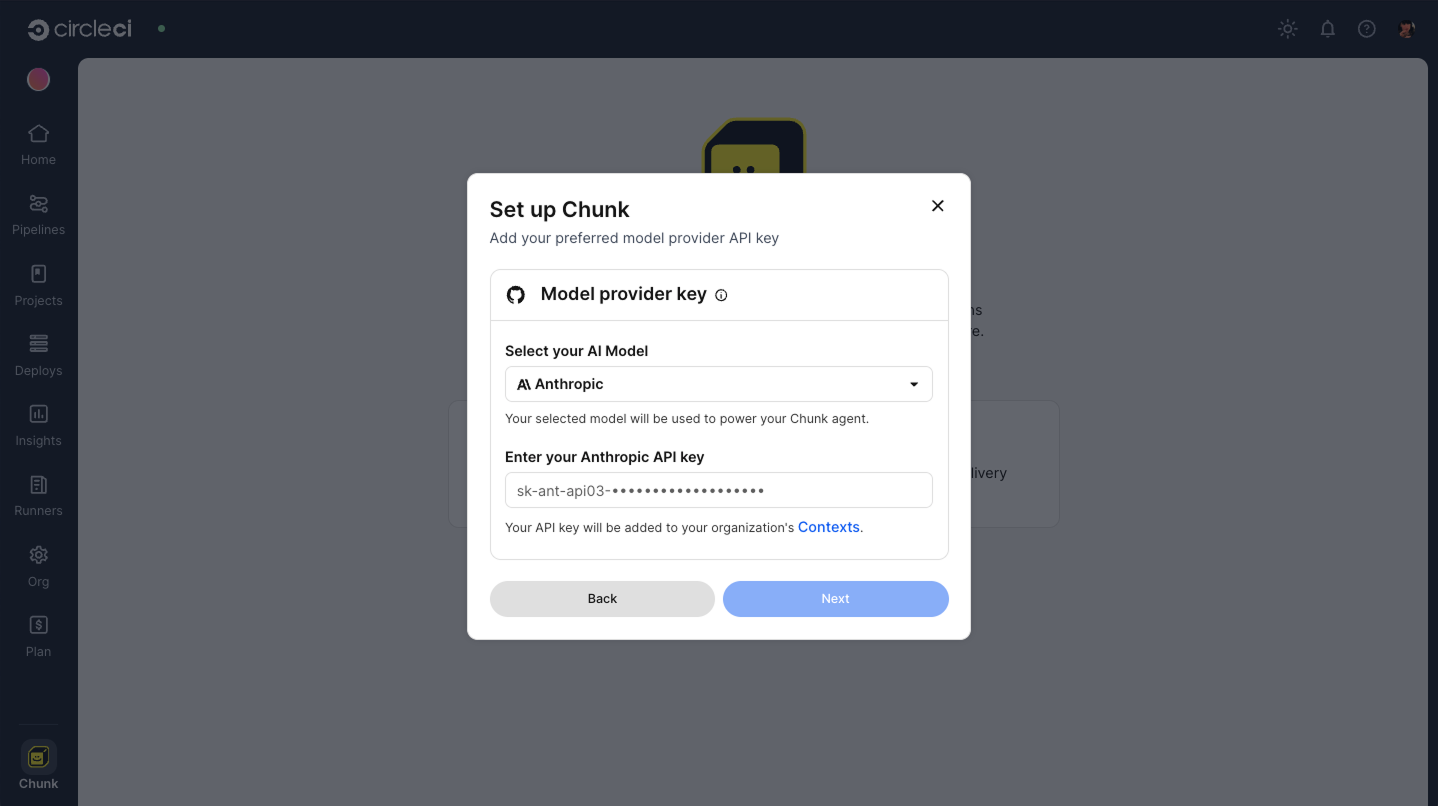

    Set up your model provider API key
    Figure 2. Set up your model provider API key

  7. Select Next to complete the setup.

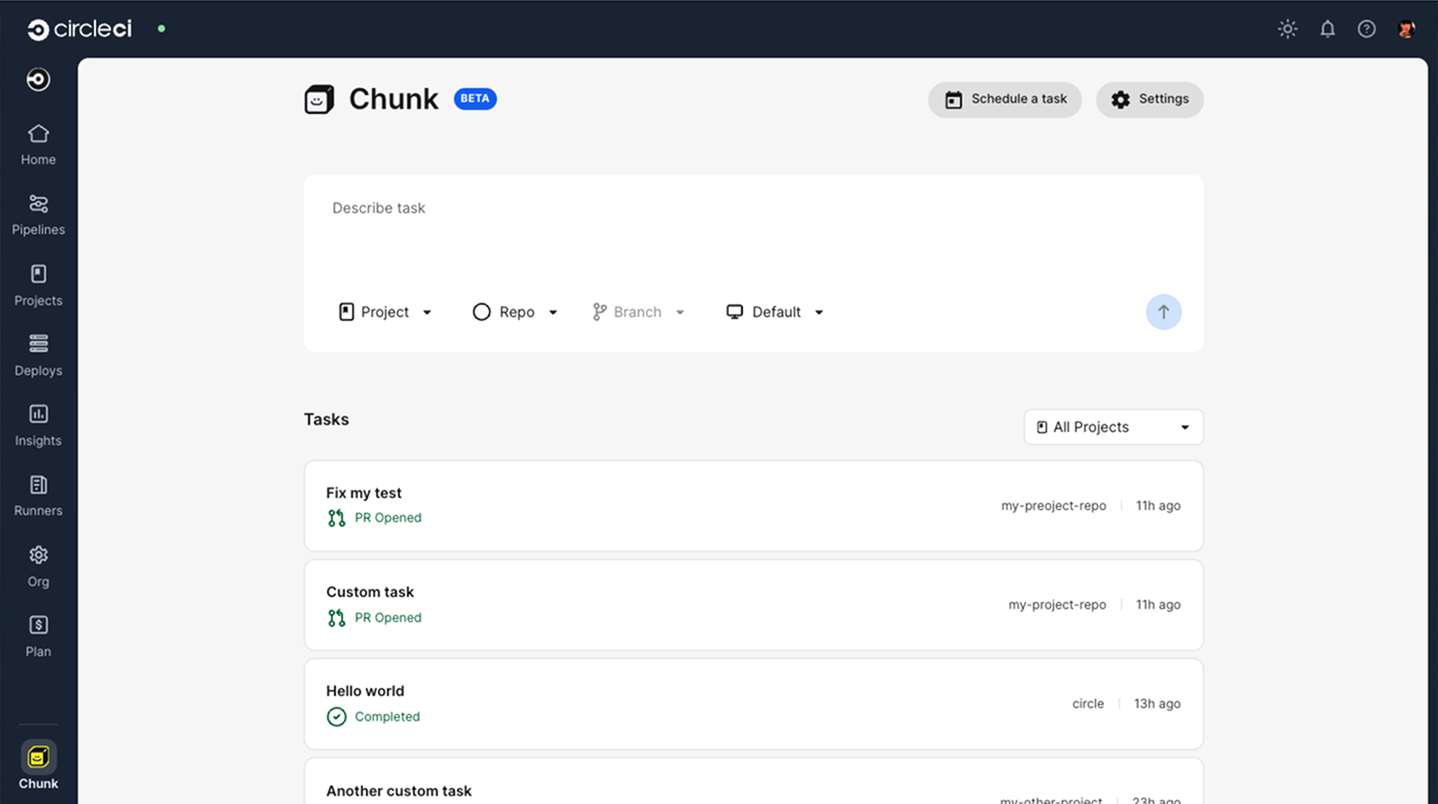

Chunk chat interface
Figure 3. Chunk interface

Once Chunk is set up, use the chat interface instruct Chunk to help you with your CI/CD tasks. Describe your task and tell Chunk which project/repository/branch to work within.

For a guide to using built-in tasks, see the Fix Flaky Tests guide.

Tear down

If you need to tear down Chunk for your organization, you can do so by deleting your AI model provider API key. Follow these steps:

  1. In the CircleCI web app, select your organization and then select Chunk from the bottom of the sidebar Chunk icon.

  2. Select the Settings button at the top of the window (the settings icon icon is a cog).

  3. Under "Model Provider API Keys" select Edit in contexts. You will be redirected to your organization’s Contexts page.

  4. Locate the circleci-agents context. Select it by name to open the context page and view the stored environment variables.

  5. Locate your AI model provider API key environment variable and select it using the radio button.

  6. Select Delete to delete the environment variable. You will be prompted to confirm the deletion.

Chunk environment setup

To improve verification success, create an "agent environment" CircleCI YAML file. Copy the environment setup sections from your existing CircleCI configuration file into a dedicated file for Chunk.

  • Name the file cci-agent-setup.yml and save it to your .circleci directory on your default branch.

  • cci-agent-setup.yml needs to include a single workflow (the name of the workflow can be anything you want) with a single job named cci-agent-setup. The cci-agent-setup job needs to set up your environment for Chunk to use. You do not need to include any steps to run tests, this is purely for environment setup.

    Example config file for cci-agent-setup.yml
    version: 2.1
workflows:
  main:
    jobs:
      - cci-agent-setup
jobs:
  cci-agent-setup:
    docker:
    - image: cimg/python:3.12
    - image: cimg/postgres:15.3
    steps:
      - checkout
      - run:
          name: Hello World
          command: |
            echo "Hello, World!"
      # insert more environment setup here

Chunk supports all standard CircleCI configuration options. This includes the following:

  • Executors.

  • Resource classes.

  • Caching.

  • Contexts.

  • Environment variables.

  • Service containers.

  • Orbs.

And everything else you would use in a standard CircleCI pipeline. If it works in your .circleci/config.yml, it works in cci-agent-setup.yml. For a complete reference of available configuration options, see the CircleCI Configuration Reference.

Instruct Chunk to use your environment

When scheduling a task, just store your cci-agent-setup.yml in your repo and Chunk will pick it up automatically.

When using the chat interface, use the environment selection below the chat text field to set up your environment. If you keep the Default environment selected, Chunk will look for a cci-agent-setup.yml file in the root of your repository. If you wish to name this file differently, create a custom environment and provide chunk with the name of the file.

You can also add secrets (environment variables) to Chunk’s environment here if needed. These secrets will be added to a context named chunk-<your-environment-name>.

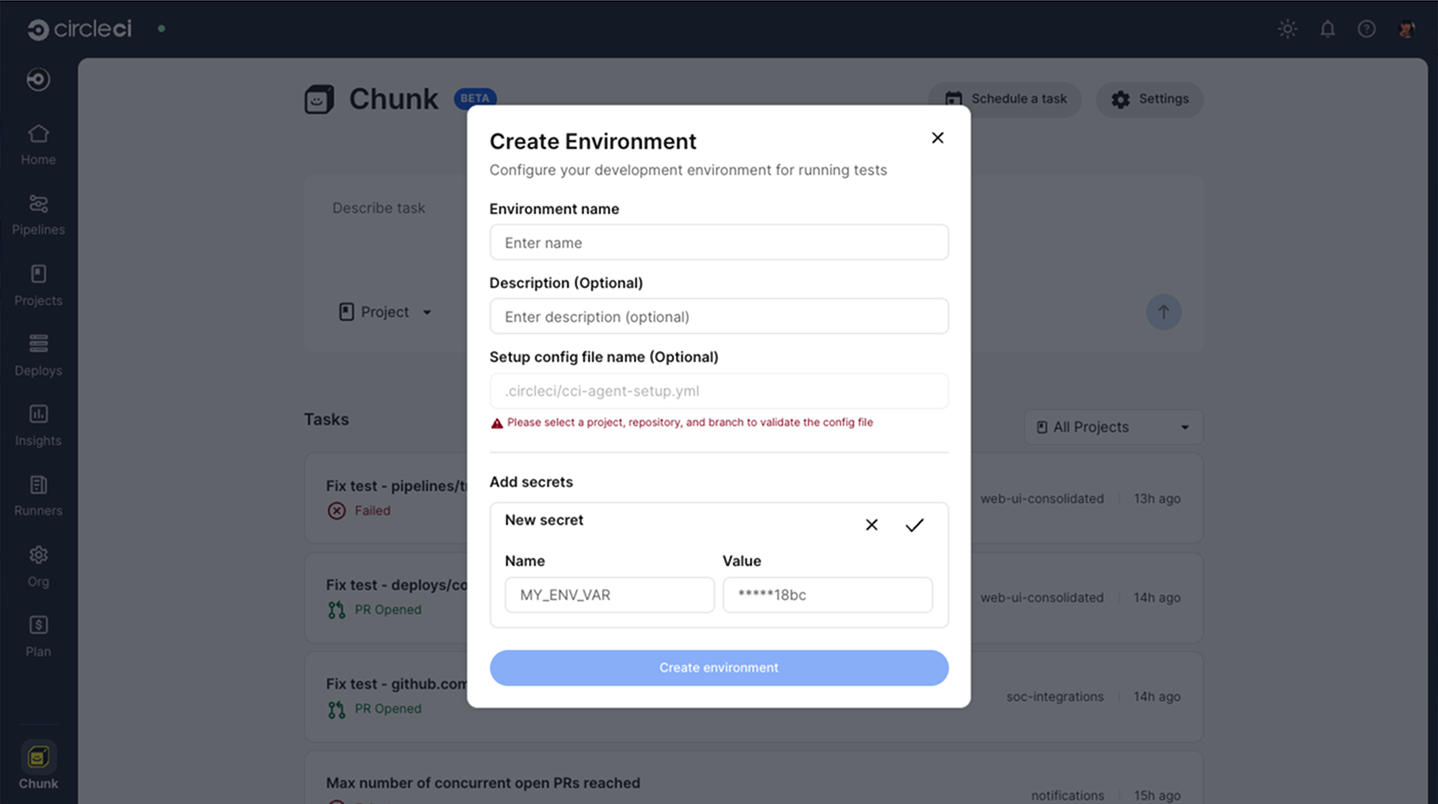

Create an environment for Chunk to use
Figure 4. Creating an environment for Chunk to use

Example cci-agent-setup.yml files

The following examples show how to set up an environment for Chunk for a variety of use cases:

  • Python

  • Caching & contexts

  • Multiple services

  • Resource classes & machine

version: 2.1
workflows:
  cci-agent-setup:
    jobs:
      - cci-agent-setup
jobs:
  cci-agent-setup:
    docker:
      - image: cimg/python:3.12
      - image: cimg/postgres:15.3
    steps:
      - checkout
      - run:
          name: Install dependencies
          command: |
             pip install -r requirements.txt
version: 2.1
workflows:
  cci-agent-setup:
    jobs:
      - cci-agent-setup:
          context:
            - my-team-context  # Includes any secrets/env vars from this context
jobs:
  cci-agent-setup:
    docker:
      - image: cimg/node:18.0
    steps:
      - checkout
      - restore_cache:
          keys:
            - v1-dependencies-{{ checksum "package-lock.json" }}
      - run:
          name: Install dependencies
          command: npm install
      - save_cache:
          paths:
            - node_modules
          key: v1-dependencies-{{ checksum "package-lock.json" }}
version: 2.1
workflows:
  cci-agent-setup:
    jobs:
      - cci-agent-setup
jobs:
  cci-agent-setup:
    docker:
      - image: cimg/ruby:3.2
      - image: cimg/postgres:15.3
        environment:
          POSTGRES_USER: circleci
          POSTGRES_DB: test_db
      - image: redis:7.0
    steps:
      - checkout
      - run:
          name: Wait for DB
          command: dockerize -wait tcp://localhost:5432 -timeout 1m
      - run:
          name: Install dependencies
          command: bundle install
      - run:
          name: Setup database
          command: bundle exec rake db:setup
version: 2.1
workflows:
  cci-agent-setup:
    jobs:
      - cci-agent-setup
jobs:
  cci-agent-setup:
    machine:
      image: ubuntu-2204:2024.01.2
    resource_class: large
    steps:
      - checkout
      - run:
          name: Install dependencies
          command: |
            sudo apt-get update
            sudo apt-get install -y build-essential

Environment variables and contexts

Project environment variables

Chunk automatically has access to any environment variables you have configured at the project level in CircleCI. You do not need to recreate or reference these, they are already available.

Contexts

If you are using CircleCI contexts to manage secrets or environment variables, you must include the context in your cci-agent-setup job (as shown in the caching example above). Chunk will have access to all variables from that context, you do not need to manually recreate them.

Configuring Chunk’s environment when using the chat interface

Using Chunk’s chat interface to describe a task, you can tell Chunk which project, repository and branch you want to work on. You can also set up Chunk’s environment. Using the "Environment" selector you can give chunk access to any secrets needed or provide Chunk with the name of your agents .yml file if different from the default cci-agent-setup.yml.

Testing your environment setup

To build and iterate on Chunk’s environment follow these steps:

  1. Navigate to Organization Settings  Chunk Tasks

  2. Identify your desired agent task.

  3. Select the ellipsis icon (ellipsis icon) and select Chunk Environment.

This page lets you run the contents of your cci-agent-setup.yml file on a specific branch and immediately see the results from those ad-hoc tasks. Use the Custom button to submit a task to Chunk and see the results.

Merge the cci-agent-setup.yml file to your default branch when the results on the environment setup page are satisfactory.

Additional guidance for Chunk

To improve Chunk’s ability to run tests and produce fixes that are aligned with stylistic/architectural preferences, you can include instructions. Your instructions can be in a markdown file (claude.md or agents.md) in the root of your repository. Chunk should pick this up automatically.

Troubleshooting

I cannot see the Chunk option in the sidebar

If you do not see Chunk Chunk icon in the sidebar, you may not have the Allow Chunk tasks option enabled. Navigate to Organization Settings  Advanced and select to toggle on the Allow Chunk tasks option.

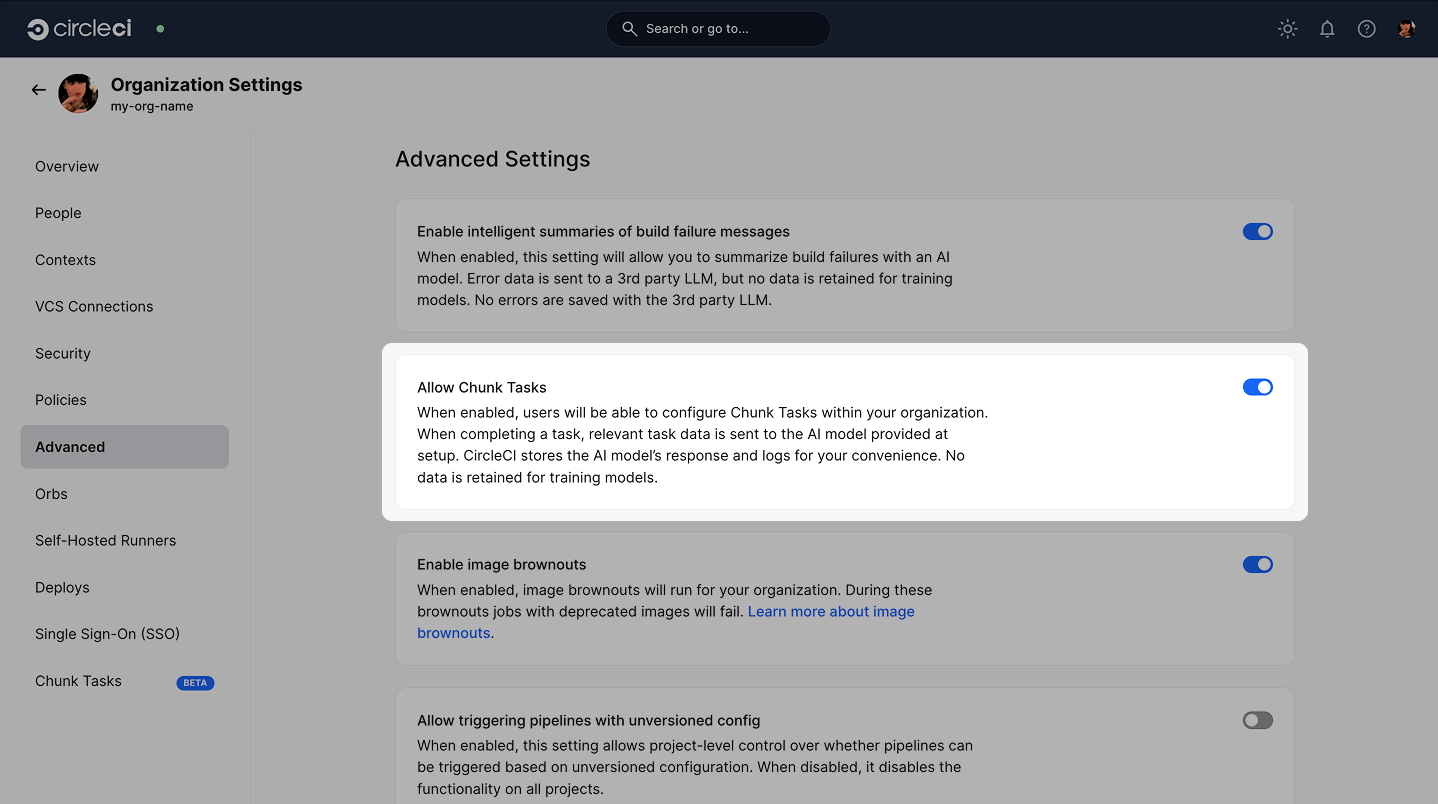

Allow Chunk tasks
Figure 5. Organization settings > Advanced > Allow Chunk tasks

I cannot get my OpenAI organization verified

If organization verification is not possible, you can bypass this requirement by adding an environment variable to your circleci-agents context, as follows:

  1. In the CircleCI web app, go to Organization Settings  Contexts.

  2. Use the search to find the circleci-agents context. Select it by name to open configuration options.

  3. Scroll down to the "Environment variables" section.

  4. Select Add environment variable to enter the variable name and value.

    • Under "Environment variable name", enter CCI_AGENT_OPENAI_MODEL.

    • Under "Value", enter gtp-5-nano.

Invalid OpenAI modal specified

If you get the following error:

Invalid OpenAI model specified. Please check the model name and ensure it is available for your account.

You will need to make sure your organization has GPT-5 access. To verify this in OpenAI Platform, follow these steps:

  1. Switch to the project you want to check in the top left dropdown.

  2. Go to Settings  Limits in the left-hand menu. This page shows the models and rate limits for your project. gpt-5 will be listed if you have access.

Frequently asked questions

Does CircleCI use my data to train AI models?

No, CircleCI does not store your source code or use it for training purposes. Chunk processes your code temporarily to generate fixes but does not retain or share this information with model providers for training.

How long are Chunk’s logs stored?

Chunk’s logs are stored by CircleCI for 90 days. 90 days is a fixed retention period that applies to all organizations, regardless of your plan’s standard data retention policy. After 90 days, logs are automatically deleted to keep your workspace at optimal performance.

Next steps

Assign a Chunk task to proactively fix your flaky tests. See the Fix Flaky Tests guide for more information.
